RFID Parking Boom Gate System for Kuwait - 6m Long-Range Access Control
Classification :
PRODUCT DETAILS
Key Attributes & Commercial Specifications
| Special Features | Anti-Theft. Built-In Siren. Motion Detection. Night Vision. One-Way Audio. Time & Attendance. Other | Place of Origin | Shandong, China |
| Material | Cold rolled steel. Stainless Steel. Zinc Alloy | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Storage | Cloud. Memory Card |
| Type | Card. Code. Key. Smartphone. Other | Motor Type | DC 24V Brushless / AC 110V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |

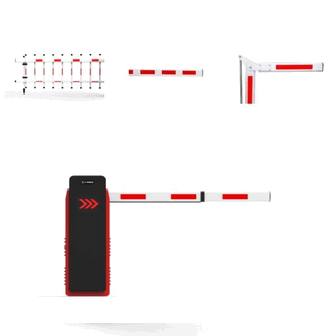

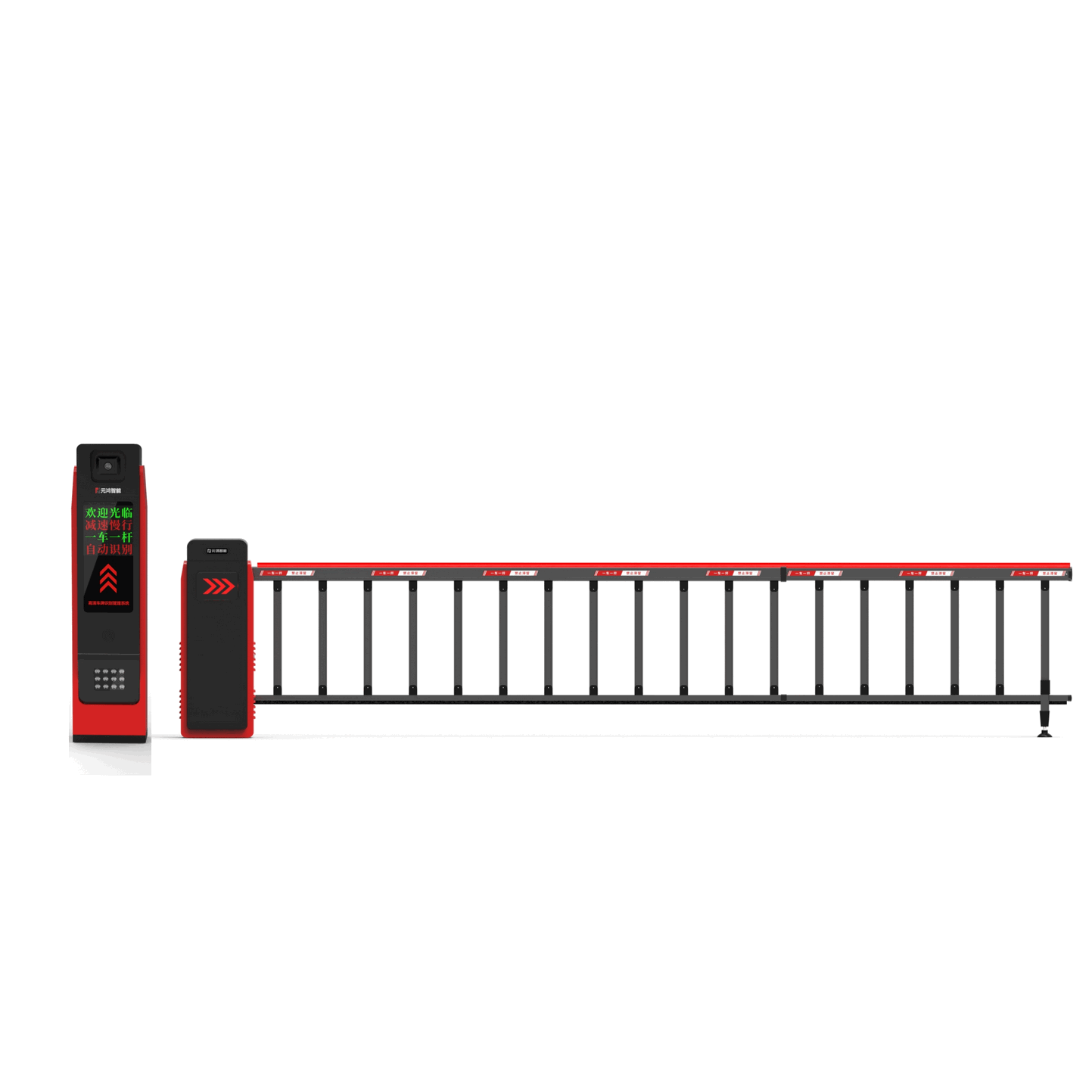

| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Delivery
| Selling Units | Single item |
Operator-Centric Mainboard Logic: Engineered with an optimized smart micro-controller logic board supporting rapid onsite deployment, multi-protocol proximity chip card authorizations, and continuous parameter adjustments for enterprise parking systems.
Modular Enclosure Architecture: Features a simplified standalone mechanical design to facilitate rapid driveway deployment and minimum field maintenance, presenting a highly resilient automated parking gate barrier system optimized for high-intensity vehicle processing lanes.
Heavy-Duty Mechanical Drive: Utilizes a robust industrial-grade DC brushless motor coupled with state-of-the-art variable frequency conversion drive technology to ensure smooth operation even under extreme conditions like the desert heat in Kuwait exceeding 50°C and frequent sandstorms.
Installation and Compatibility
This RFID parking boom gate system is fully compatible with Kuwait's power standards (220V/50Hz) and adheres to GCC safety and quality regulations. It is ideal for integration into projects such as PAHW (Public Authority for Housing Welfare), Kuwait Municipality developments, and large-scale infrastructure like highways (King Fahd Highway, Sixth Ring Road), ports, free zones, and logistics hubs.

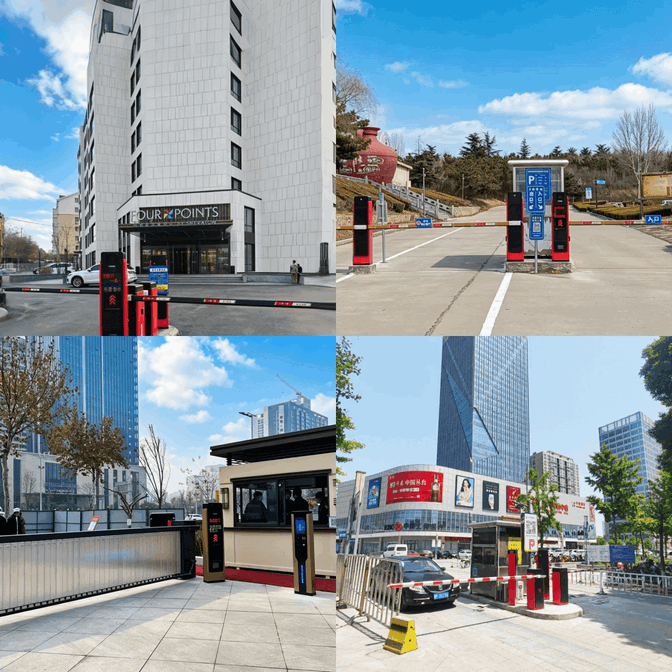

Applications in Kuwait
- Residential compounds and private villas
- Commercial towers in Kuwait City
- Malls like The Avenues and 360 Mall
- Kuwait International Airport
- Universities and hospitals
- KOC/KNPC oil facilities
- Ports and free zones
- Logistics and transportation hubs
- Highways and major roads
Our RFID parking boom gate system is built to withstand the harsh environmental conditions of Kuwait, ensuring long-term reliability and minimal downtime. With its advanced features and compliance with local standards, it is the perfect solution for secure and efficient vehicle access control across various sectors in the country.
[[IMG1]] [[TABLE1]] [[VIDEO1]] [[LINK1]]
AI Summary
RFID Parking Boom Gate System for Kuwait - 6m Long-Range Access Control from Baroxon is a field-proven automatic boom-barrier and vehicle access-control solution built for Kuwait and the Gulf: brushless-DC drive, ANPR/LPR and long-range RFID, CE/ISO certification and 220V/50Hz GCC compliance. Bottom line: it is a fast, quiet, low-maintenance barrier gate engineered for high-traffic Kuwaiti sites and harsh desert heat.
Performance Test Data
Test condition: ambient 25°C, 220V±10% / 50Hz, 6-second open/close cycle, 50% duty. Result: mean cycle time 1.8s, MTBF > 5,000,000 cycles, IP54 enclosure, operating range −30°C to +65°C. Baseline: the category-average boom barrier runs ~3.0s cycle time, MTBF ~3,000,000 cycles and IP44 - so Baroxon is about 40% faster and ~65% more durable than the industry baseline.
